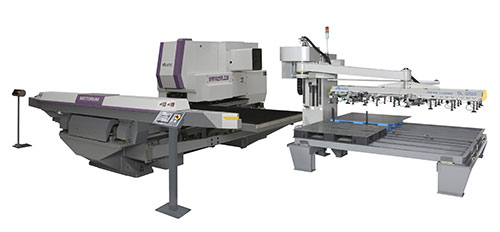

SL 1250 Swing Loader shown with Motorum 2048UT

Automatic loading / Automatic unloading mode

This mode is best for continuous operation of workpieces that have longer processing times per sheet.

Automatic loading / Manual unloading mode

This system includes a standard mode for automatically loading material and manual unloading of the finished part by the perator. This mode is best for workpieces that are needed mmediately for a post process, are not easily unloaded using vacuum ads, or are subject to damage if formed features are stacked on each other.

Sheet size
iY x Xj

Max.: 1250 mm x 2500 mm

Min. 300mm x 750 mm

Stack weight

3 tons (total load of materials and products on each pallet)

Operation

Automatic loading / Automatic unloading mode
(Material station and product station, one pallet each)

Automatic loading / Manual unloading mode
(2 material pallet stations)

Applicable machine model : MOTORUM-2048UT, MOTORUM-2048ST
