Ball screw drive
The ram shaft drive enables high-speed movement at 100mm/sec and
stable repeatstop accuracy by adopting a ball screw drive mechanism by
AC servo motor and ball screw drive. This is a drive method superior in
environmental performance including being oilless and noise reduction by
the reducer.
High-speed movement by the ball screw drive
Stable high repeating accuracy by the ball screw drive
Environmental performance
(oilless and noise reduction by the reducer)
High rigid offset frame

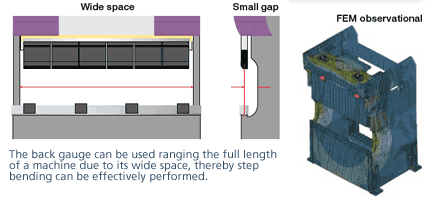

The small C frame gap makes the frame for more rigid and produces more stable bending across the
lower table. This is a drive method superior in environmental performance including being oilless
and noise reduction by the reducer.
Main Specifications
|
|
BB4013
|
|
Press force
|
kN
ton
|
353
36
|
|
Bending length
|
immj
|
1260
|
|
Distance between frames
|
immj
|
1300
|
|
Gap depth
|
immj
|
100
|
|
Open height
|
immj
|
280
|
|
Ram stroke
|
immj
|
150
|
|
Ram speed
|
Approach
|
(mm/S)
|
100
|
|
Bending
|
(mm/S)
|
20
|
|
Return
|
(mm/S)
|
100
|
|
Height from floor
|
immj
|
2380
|
|
Total depth
|
immj
|
1850
|
|
Table height
|
immj
|
900
|
|
Total width
|
immj
|
1660
|
|
Weight
|
itonj
|
3.5
|
